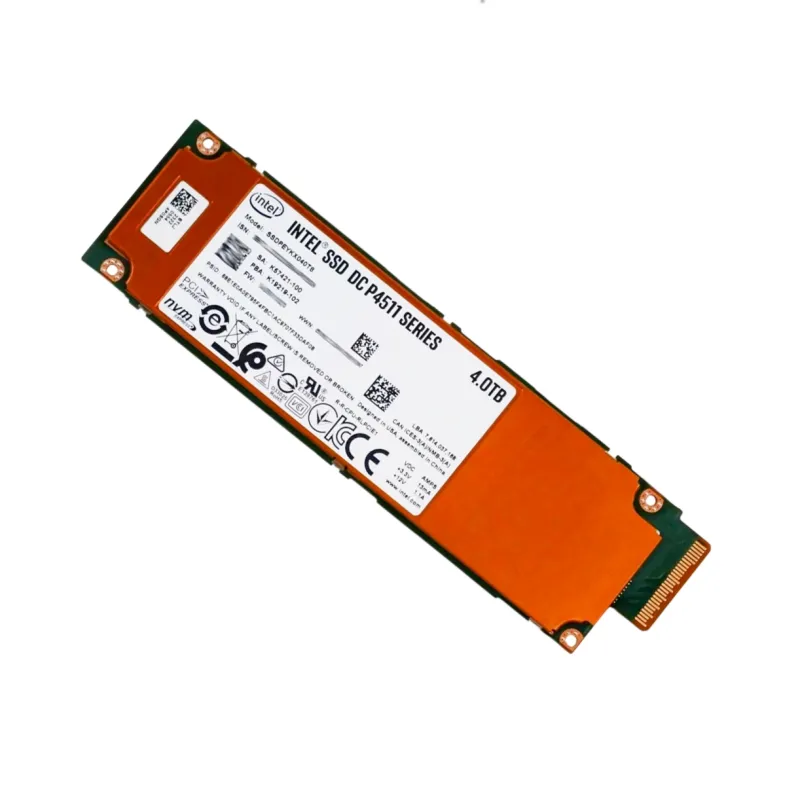

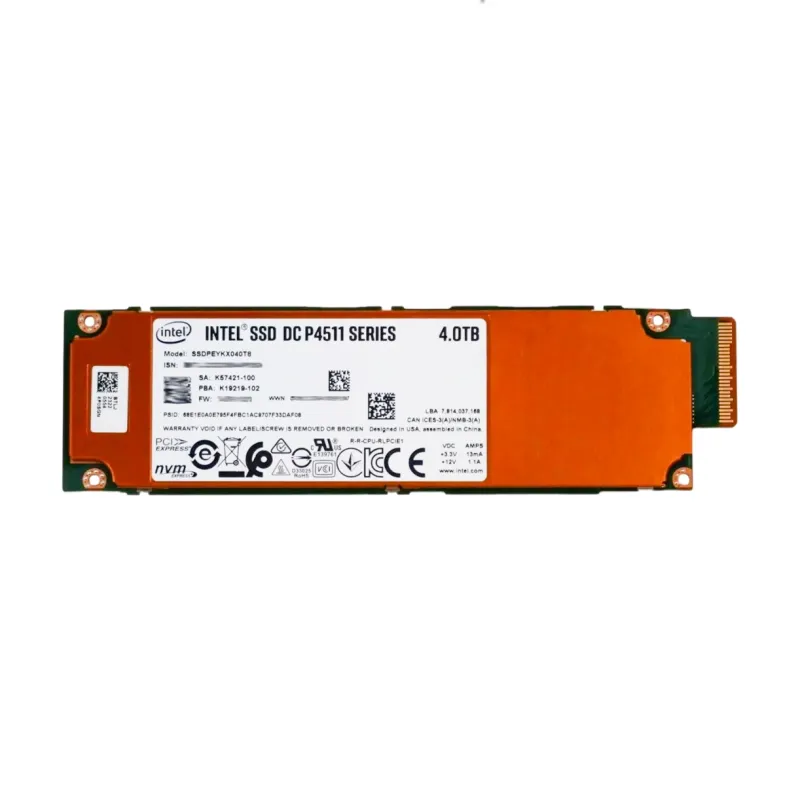

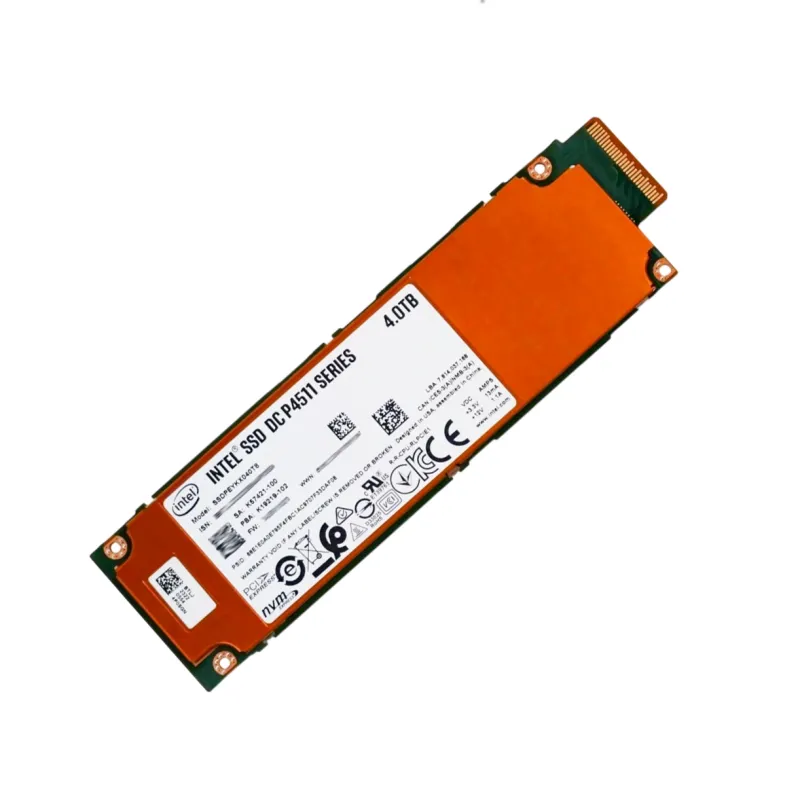

The Intel DC P4511 4TB NVMe SSD (SSDPEYKX040T8)
is an enterprise solid-state drive designed for data-center and
server storage environments. It features Intel 64-layer 3D TLC
NAND flash memory and a PCI Express 3.1 x4 NVMe interface. With
sequential read speeds of up to 2,800 MB/s and sequential write
speeds of up to 2,400 MB/s, it is designed for enterprise
applications and read-intensive workloads. This model uses the
compact EDSFF E1.S 5.9mm form factor, so installation requires
a compatible E1.S drive bay and supported NVMe storage platform.
Key Specifications
Manufacturer
Intel
Product Series
Intel SSD DC P4511
Model
SSDPEYKX040T8
Part Number / MPN
SSDPEYKX040T8
Product Type
Enterprise Internal NVMe SSD
Storage Capacity
4TB
Interface
PCI Express 3.1 x4
Protocol
NVMe 1.2
Form Factor
EDSFF E1.S, 5.9mm
NAND Flash Type
Intel 64-Layer 3D TLC NAND
Workload Classification
Read Intensive (RI)
Sequential Read
Up to 2,800 MB/s
Sequential Write
Up to 2,400 MB/s
Random 4K Read
Up to 610,200 IOPS
Random 4K Write
Up to 75,000 IOPS
Endurance Rating
Up to 3.33 PBW (0.5 DWPD over 5 Years)
Power Consumption
12.5W Active / Less Than 5W Idle
MTBF
2 Million Hours
Operating Temperature
0°C to 70°C
Application
Enterprise Servers and Data Centers
Condition
Used
Compatible With
✓Systems with EDSFF E1.S 5.9mm Drive Bays
✓PCIe 3.1 x4 NVMe Storage Platforms
✓Enterprise Servers Supporting E1.S NVMe SSDs
