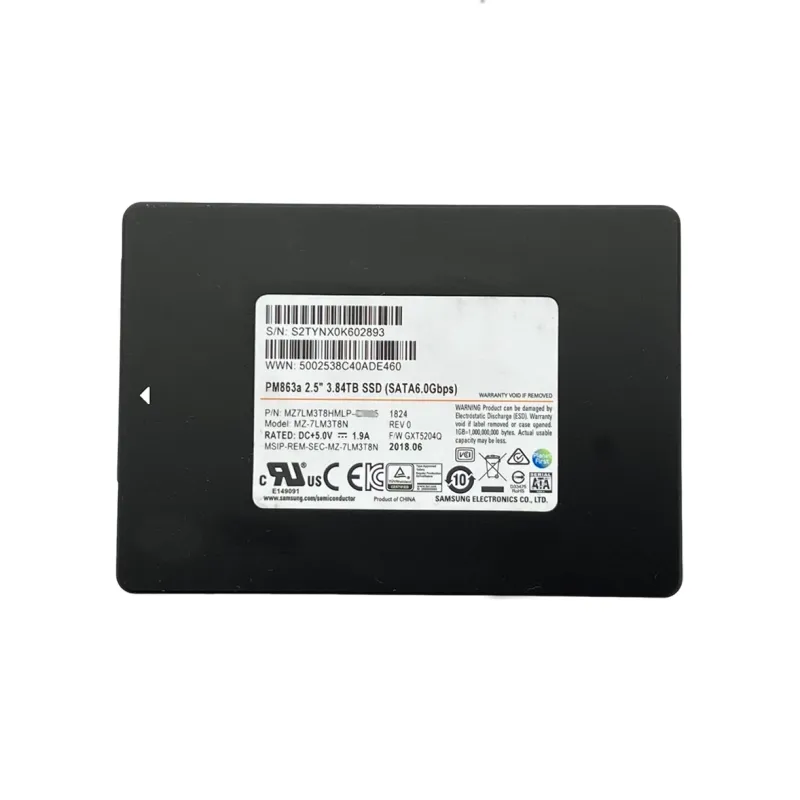

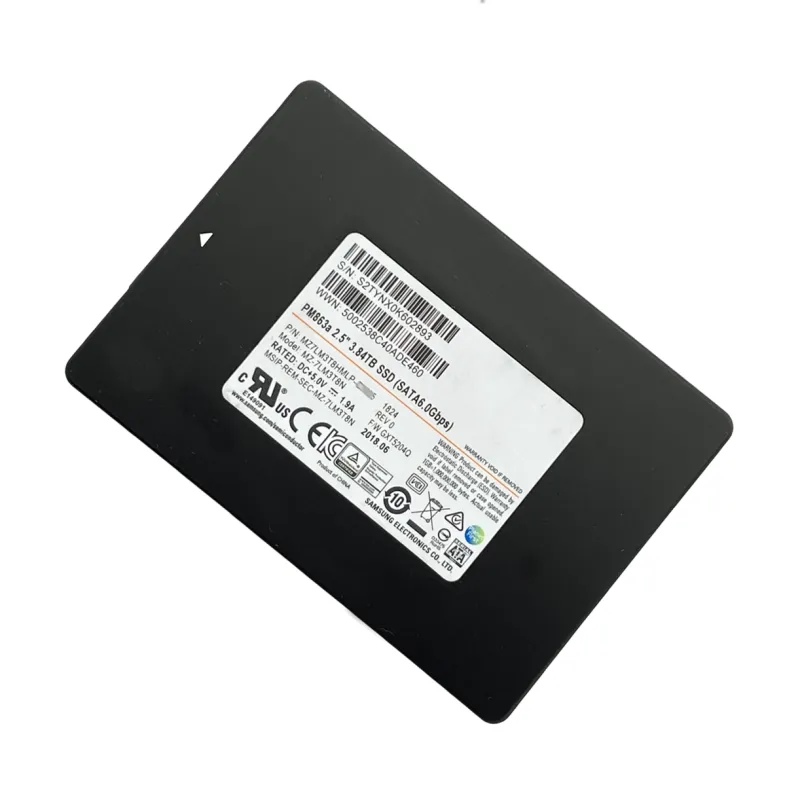

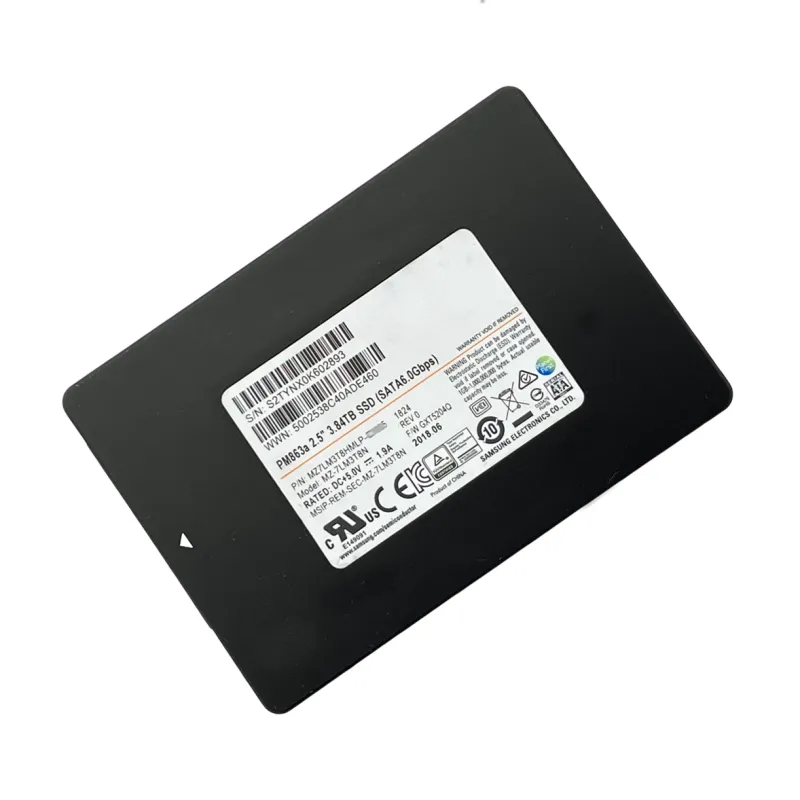

The Samsung PM863a 3.84TB SATA SSD (MZ-7LM3T8N)
is an enterprise solid-state drive designed for data centers, servers,
and compatible storage systems. It features Samsung V-NAND flash memory,
a Samsung Mercury controller, and a SATA III 6Gb/s interface in a
2.5-inch, 7mm form factor. The drive delivers sequential read speeds
of up to 520 MB/s and sequential write speeds of up to 480 MB/s,
with 4K random read performance of up to 97,000 IOPS and random write
performance of up to 24,000 IOPS. Additional features include
AES 256-bit encryption, TRIM support, and RAID support when used
with a compatible RAID controller. Its 3.84TB capacity makes it
suitable for enterprise storage workloads requiring high-capacity
SATA solid-state storage.
Key Specifications
Manufacturer
Samsung
Series
PM863a
Model / MPN
MZ-7LM3T8N
Product Type
Enterprise Internal Solid State Drive
Storage Capacity
3.84TB (3,840GB)
Interface
SATA III 6Gb/s
Form Factor
2.5-inch, 7mm
Drive Type
Internal SSD
Controller
Samsung Mercury
NAND Flash Memory
Samsung V-NAND TLC
Sequential Read
Up to 520 MB/s
Sequential Write
Up to 480 MB/s
4K Random Read
Up to 97,000 IOPS
4K Random Write
Up to 24,000 IOPS
Endurance Rating
Up to 5,466 TBW
Encryption
AES 256-bit
TRIM Support
Supported
RAID Support
Supported with Compatible RAID Controller
MTBF
2 Million Hours
Power Consumption
Approx. 3W Read / 4W Write
Operating Voltage
5V DC
Operating Temperature
0°C to 70°C
Condition
Used
Compatible With
✓Servers with Compatible 2.5-inch SATA Bays
✓Enterprise Storage Systems Supporting SATA SSDs
✓Workstations with Compatible SATA Connections
✓RAID Systems with Compatible SATA Support
