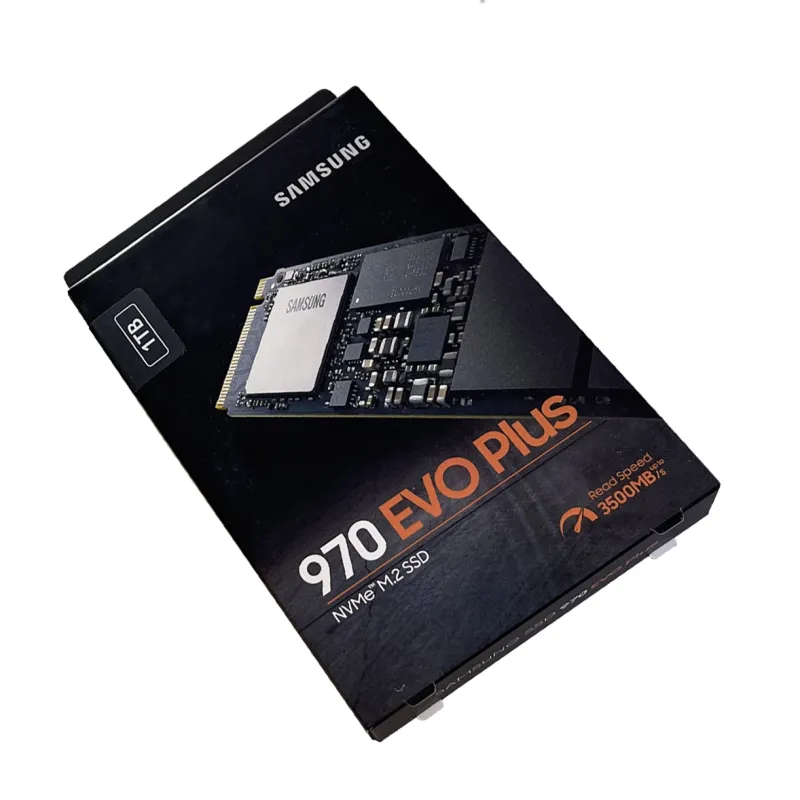

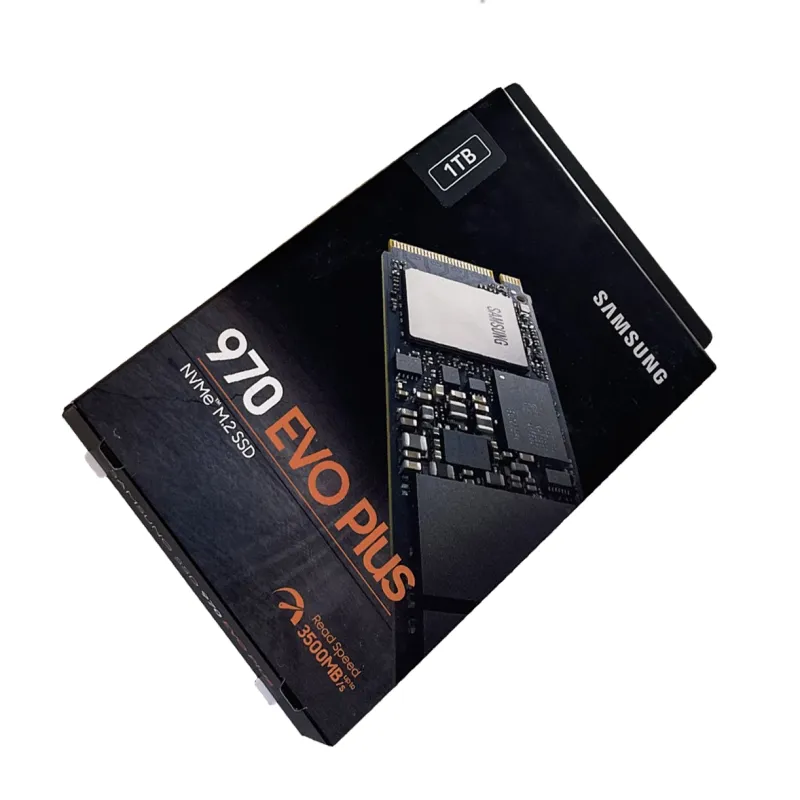

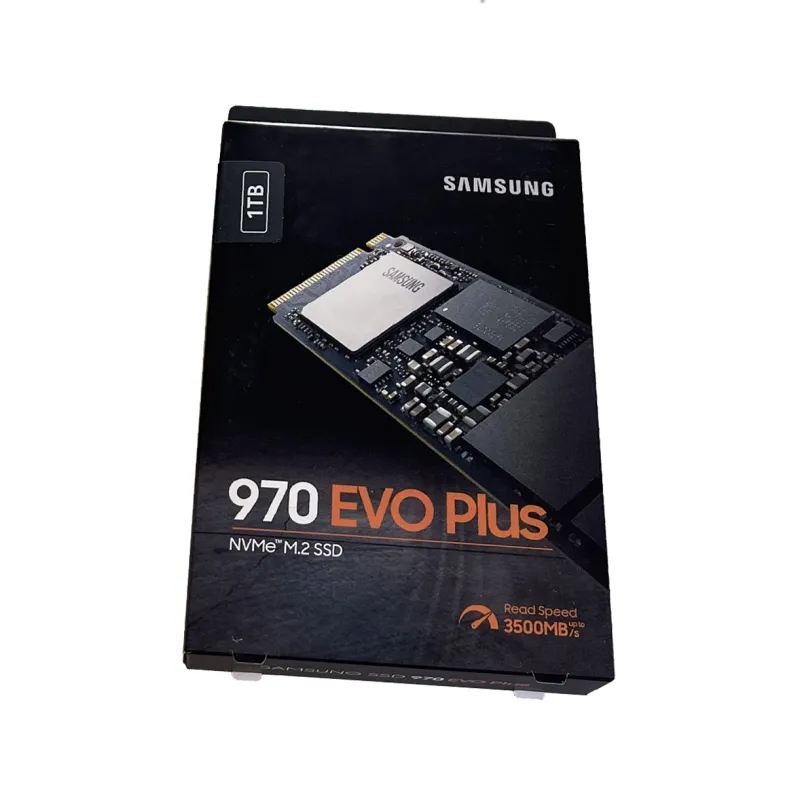

The Samsung 970 EVO Plus 1TB NVMe SSD (MZ-V7S1T0B/AM)
is a high-performance solid-state drive designed for compatible desktop
PCs, workstations, and other computing systems. It uses a PCIe Gen 3.0 x4
interface with NVMe 1.3 support and an M.2 2280 form factor. Featuring
Samsung V-NAND 3-bit MLC flash memory, a Samsung Phoenix controller,
and 1GB of LPDDR4 DRAM cache, it delivers sequential read speeds of up
to 3,500 MB/s and sequential write speeds of up to 3,300 MB/s. The drive
also supports AES 256-bit hardware encryption and is designed for systems
with a compatible M.2 M-key NVMe slot.
Key Specifications
Manufacturer
Samsung
Product Line
970 EVO Plus
Part Number / MPN
MZ-V7S1T0B/AM
Product Type
Internal NVMe Solid State Drive
Storage Capacity
1TB
Interface
PCIe Gen 3.0 x4, NVMe 1.3
Form Factor
M.2 2280
NAND Flash Memory
Samsung V-NAND 3-bit MLC (TLC)
Controller
Samsung Phoenix
Cache Memory
1GB LPDDR4 DRAM
Sequential Read
Up to 3,500 MB/s
Sequential Write
Up to 3,300 MB/s
Random Read (4KB, QD32)
Up to 600,000 IOPS
Random Write (4KB, QD32)
Up to 550,000 IOPS
Total Bytes Written
600TB TBW
Encryption
AES 256-bit, TCG/Opal 2.0, IEEE 1667
TRIM Support
Supported
S.M.A.R.T. Support
Supported
Operating Temperature
0°C to 70°C
MTBF
1.5 Million Hours
Application
Client PCs and Compatible Computing Systems
Condition
Brand New
Compatible With
✓Desktop PCs with Compatible M.2 NVMe Slots
✓Workstations Supporting PCIe Gen 3.0 x4 NVMe SSDs
✓Laptops with Compatible M.2 2280 NVMe Slots
✓Systems Supporting M.2 M-Key PCIe NVMe Storage
