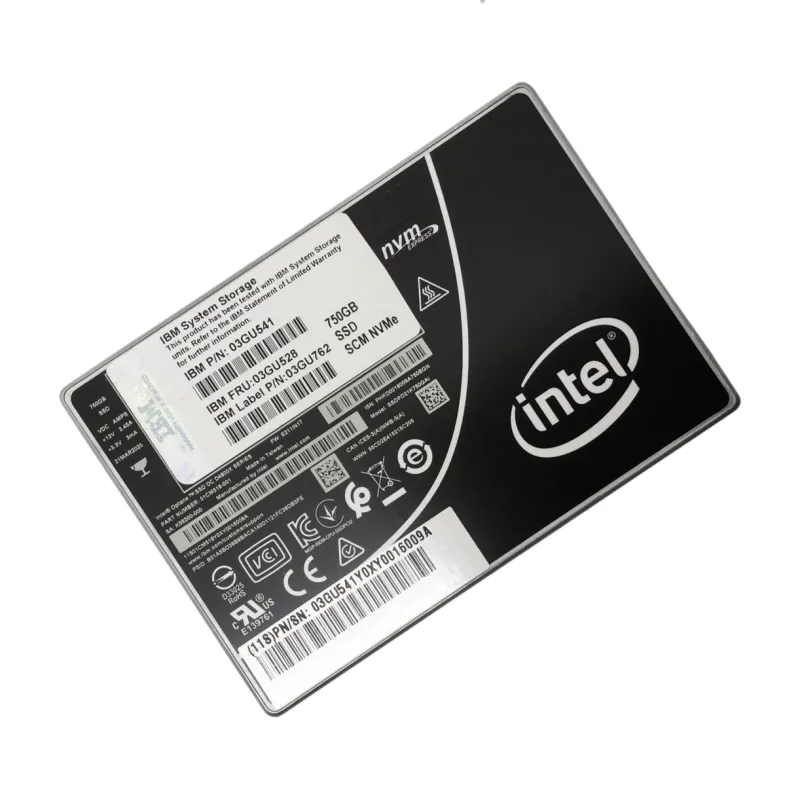

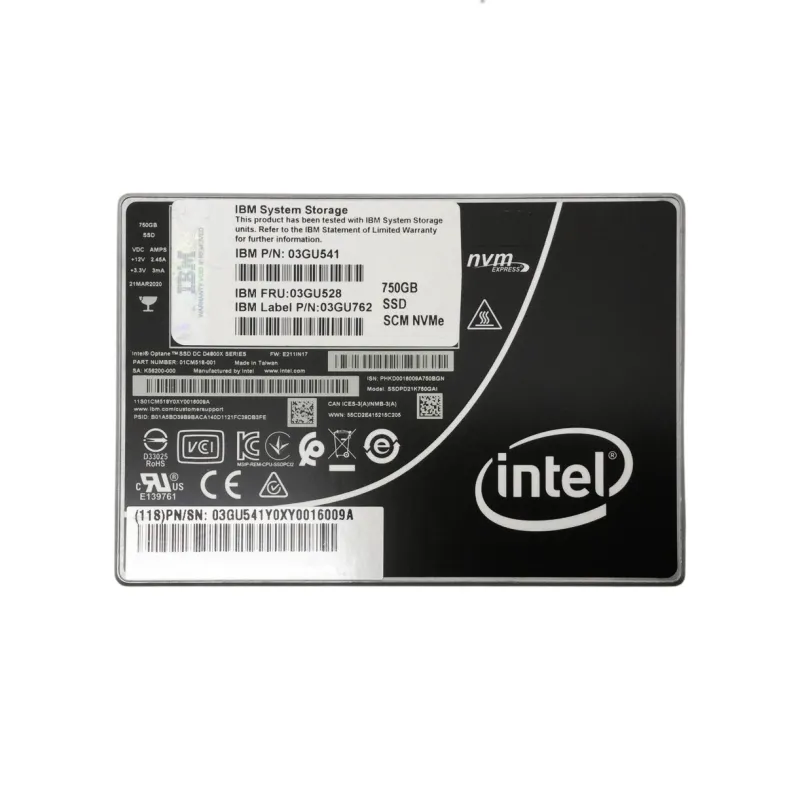

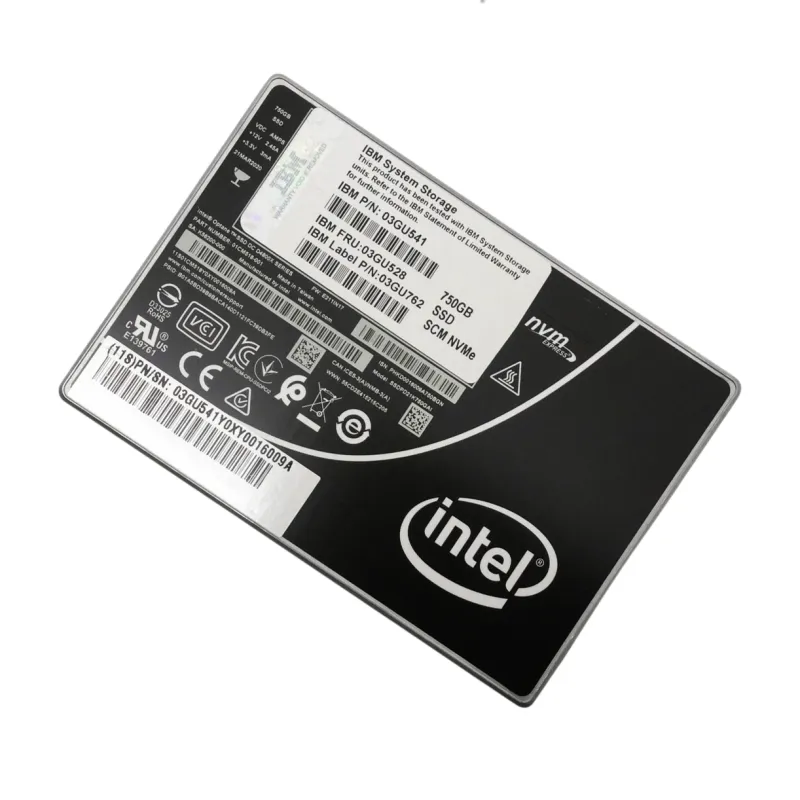

The IBM Intel Optane SSD DC D4800X 750GB (SSDPD21K750GAI)
is a high-endurance enterprise solid-state drive designed for data
centers, server platforms, and demanding storage applications.
Built on Intel Optane 3D XPoint memory technology, it delivers
consistently low latency, high random I/O performance, and exceptional
write endurance compared with conventional NAND-based SSDs. The drive
uses a 2.5-inch U.2 form factor and a PCIe 3.0 x2 NVMe interface with
dual-port capability. With sequential read and write speeds of up to
2,400 MB/s and random performance of up to 560,000 read IOPS and
540,000 write IOPS, it is suited to latency-sensitive workloads,
databases, transaction processing, caching, and enterprise
applications requiring intensive read and write operations.
Installation requires a compatible U.2 NVMe bay, PCIe/NVMe
backplane, and system support for the drive's dual-port interface.
Key Specifications
Manufacturer / Brand
IBM / Intel
Product Series
Intel Optane SSD DC D4800X
Part Number / MPN
SSDPD21K750GAI
Product Type
Enterprise NVMe Solid State Drive
Storage Capacity
750GB
Interface
PCIe 3.0 x2
Protocol
NVMe
Form Factor
2.5-inch U.2, 15mm
Memory Technology
Intel Optane 3D XPoint
Port Configuration
Dual-Port NVMe
Workload Classification
Enterprise High-Endurance
Sequential Read
Up to 2,400 MB/s
Sequential Write
Up to 2,400 MB/s
Random 4K Read
Up to 560,000 IOPS
Random 4K Write
Up to 540,000 IOPS
Endurance Rating
Up to 41.1 PBW
Drive Writes Per Day
Up to 30 DWPD
Typical Random Read Latency
Approximately 22 µs
Typical Random Write Latency
Approximately 29 µs
Hardware Encryption
AES 256-bit
Data Protection
Enhanced Power-Loss and End-to-End Data Protection
