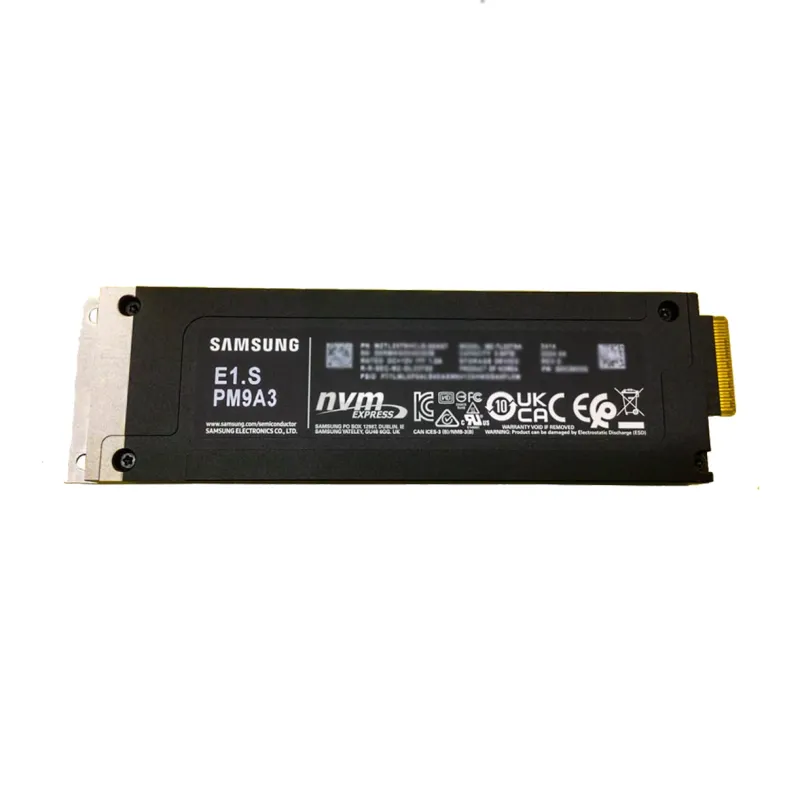

The Samsung PM9A3 3.84TB Enterprise NVMe SSD
(MZ-TL23T8A / MZTL23T8HCLS) is a high-capacity solid-state
drive designed for compatible enterprise servers and data center
storage systems. It features a PCI Express 4.0 x4 interface,
NVMe protocol support, and Samsung V-NAND TLC flash memory.
This E1.S form-factor drive is designed for data center deployments
requiring high-speed storage, efficient server density, and
enterprise-grade data protection. It supports sequential read
speeds of up to 6,800 MB/s and sequential write speeds of up to
4,000 MB/s, with random read performance of up to 1,000,000 IOPS
and random write performance of up to 180,000 IOPS. Compatibility
requires a system with a supported E1.S drive bay and PCIe NVMe
connectivity.
Key Specifications
Manufacturer / Brand
Samsung
Series
PM9A3
Model
MZ-TL23T8A
Part Number / MPN
MZTL23T8HCLS
Product Type
Enterprise Internal Solid State Drive
Storage Capacity
3.84TB
Interface
PCI Express 4.0 x4
Protocol
NVMe 1.4
Form Factor
E1.S (Enterprise and Data Center 1U Short)
Connector
SFF-TA-1006
NAND Flash Memory
Samsung V-NAND TLC
Sequential Read
Up to 6,800 MB/s
Sequential Write
Up to 4,000 MB/s
4K Random Read
Up to 1,000,000 IOPS
4K Random Write
Up to 180,000 IOPS
Endurance Rating
1 DWPD for 5 Years
Total Bytes Written
7,008 TBW
Security
AES 256-bit Encryption, TCG Opal 2.0
Data Protection
Power-Loss Protection and End-to-End Data Protection
MTBF
2 Million Hours
Power Consumption
Up to 11W Read / 13.5W Write
Operating Temperature
0°C to 70°C
Application
Enterprise Servers and Data Center Storage
Condition
New Other
Compatible With
✓Servers with Compatible E1.S NVMe Bays
✓PCIe 4.0 x4 NVMe Storage Systems
✓Enterprise Data Center Platforms Supporting E1.S SSDs
